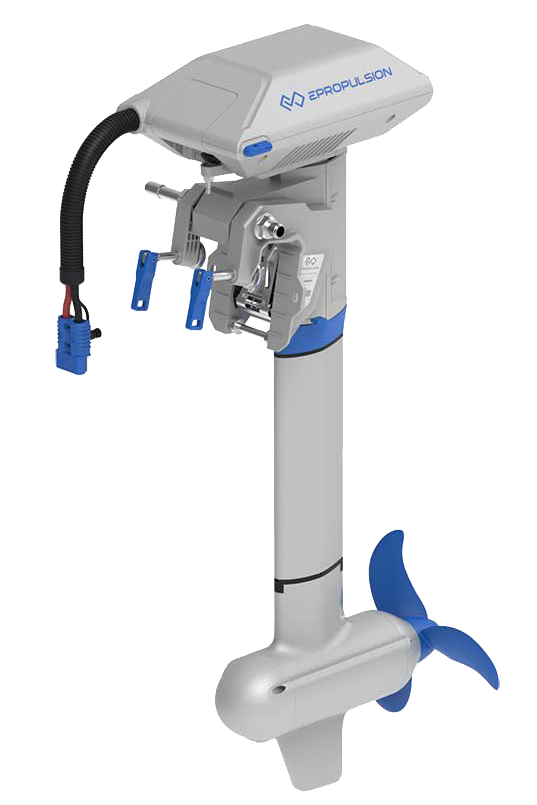

ePropulsion Navy Evo Electric Outboard Motors
The ePropulsion Navy Evo range offers a choice of 3kW or 6kW electric outboard motor. To complete the system simply add your preferred control option and battery. Installation is simple resulting in a quiet, clean and maintenance free boating experience. All Navy Evo electric outboards feature electric start, a magnetic kill cord, adjustable maximum power output and a digital display with real-time monitoring of power, runtime, battery level and voltage.
Navy 3.0 Evo
Power: 3kW / 6hp
Max Current Draw: 62.5A
Short or Long Shaft
Weight*: 21.7kg
Range*:
13:20hrs / 79km at 6 kph (300W)
80mins / 21.9km at 16.4 kph (3000W)
1 x E80 Battery
Navy 6.0 Evo
Power: 6kW / 9.9hp
Max Current Draw: 125A
Short or Long Shaft
Weight*: 27.8kg
Range*:
18hrs / 116km at 6.5 kph (500W)
90mins / 36.5km at 24.3 kph (6000W)
1 x E175 Battery
*short shaft version. Range figures provided based on 12' aluminium boat with one person on a calm lake.
Navy Evo Control Options

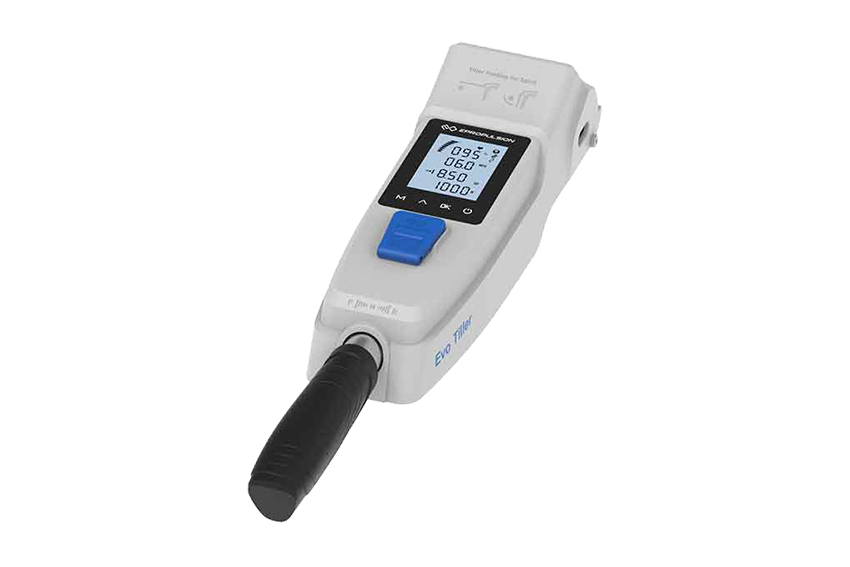

Evo Tiller Control
Tiller steering option
Stepless forward & reverse speed control
Integrated LED screen
Integrated safety cord
Evo Side Mount Control
Solid design with separate display
Easily mounted
Low Profile
Integrated safety cord
Evo Top Mount Control
Remote controller with integrated display
Easily mounted
Wired or Wireless setup
Integrated safety cord
Evo Dual Control
Top mounted dual motor control
Control two Navy Evo motors simultaneously
Separate display for maximum flexibility
Integrated safety cord
Navy Evo Battery Options
The ePropulsion E Series batteries are 48V lithium iron phospate (LiFePo4), the safest form of lithium chemistry. Compatible with the entire range of outboards they are waterproof rated (IP67). Up to 16 batteries of the same model can be connected in parallel for additional capacity.
Lithium batteries offer high energy density, 70% less weight than the equivalent lead-acid battery and a 3000 cycle life at 80% DOD.
E60 - 3kWh
Supports 3kW coninuous output
Full charge in 2.7hrs (1 charger)
Weight: 33kg
Size: 51.2 x 29 x 30cm (w x d x h)
2yr warranty (non-commercial)
E163 - 8.3kWh
Supports 6kW continuous output
Full charge in 7.2hrs (1 charger)
Weight: 76kg
Size: 47 x 29.5 x 49.5cm (w x d x h)
2yr warranty (non-commercial)
Alternative 48V Battery
Any appropriate 48v battery can be used to power the Pod Drive range.
Wet lead-acid, AGM or Gel maintenance free options are all possible to suit your application.
Battery voltage and state of charge will be available on the ePropulsion display.
An extensive range of sizes and capacities are available to fit specific spaces.
With the increasing range of electric propulsion systems being promoted we are finding many performance claims are somewhat over-stated. The Electric Boat Company only offer products we have first hand experience with and in many cases use the exact systems within our own hire fleets, running thousands of hours per year.
Try before you buy: A number of our hire fleet operating from Marlow, Oakley Court and Runnymede use the Navy Evo outboard. Why not try one on the water for yourself?
ePropulsion Electric Drive Systems
The ePropulsion range combines style, reliability and ease of use in a range of fantastic products. We have developed extensive experience of their systems and been so impressed a range are used across our hire fleets.
The digital display delivers all the data you need to get the most out of your time on the water including current speed, power use and remaining range in both time and distance.
As main dealers for the entire range of ePropulsion products The Electric Boat Company are pleased to offer ongoing support and advice for any system..
